SAE J517 100 R6-guangyou

PHONE：0086-546-6897102

SKYPE：

Inside		Outside	Working pressure		Burst pressure		Bend radius	Weight	Max
lcnch	mm	mm	bar	psi	bar	psi	mm	gr	m
3/16	4.8	10.7	34	493	136	1972	50	89	100
1/4	6.4	12.3	28	406	112	1624	65	104	100
5/16	7.9	13.9	28	406	112	1624	80	124	100
3/8	9.5	15.5	28	406	112	1624	80	149	100
1/2	12.7	19.0	28	406	112	1624	100	197	100
5/8	16	22.6	24	348	96	1392	125	253	50
3/4	19	25.8	21	305	83	1218	150	303	50
1	25.4	33.2		131	36	522	170	454	50

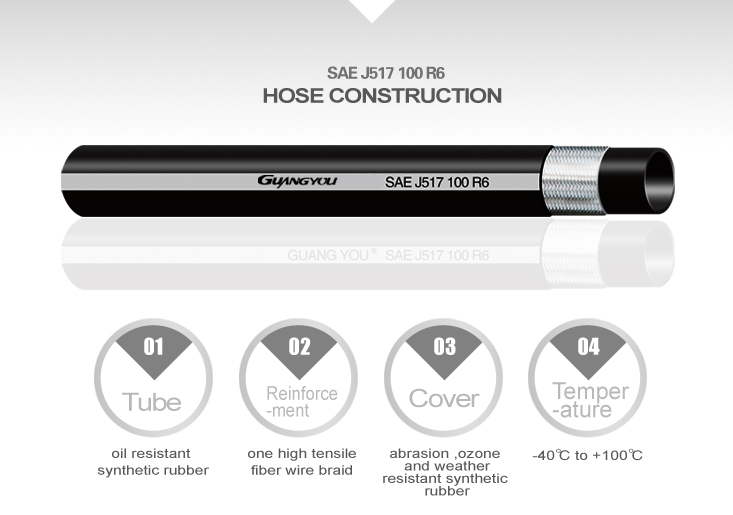

Hydraulic hose: oil resistant synthetic rubber, one high tensile fiber wire braid
