DIN EN 856 4SH-guangyou

PHONE：0086-546-6897102

SKYPE：

NominalΦ		Inside	WireΦ	OutsideΦ	Working pressure		Test pressure	Burst pressure	Bend radius	Weight
lcnch	dash	mm	mm	mm	bar	psi	bar	bar	mm	kg/m
3/4	19	19.0	28.4	32.2	420	6090	1000	1680	280	1.53
1	25	25.4	35.2	38.7	380	5510	910	1520	340	2.06
1-1/4	31	31.8	41.9	45.5	345	5000	830	1380	460	2.46
1-1/2	38	38.1	48.8	53.5	290	4205	695	1160	560	3.35
2	51	50.8	63.2	68.1	250	3625	600	1000	700	4.55

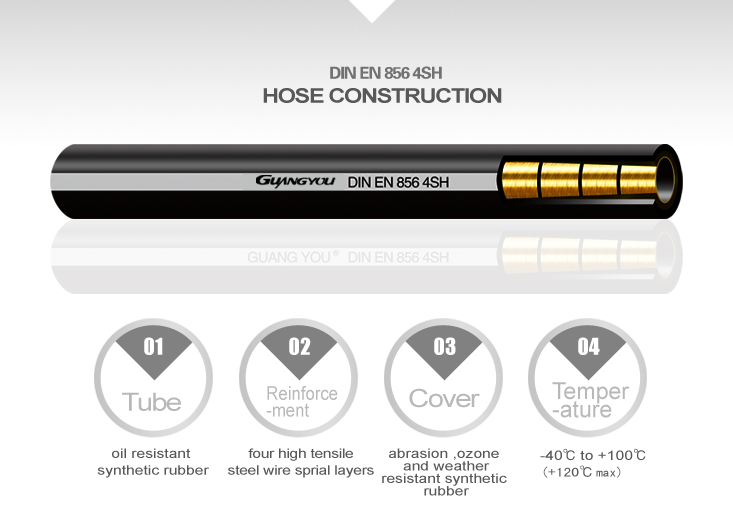

Hydraulic hose: oil resistant synthetic rubber, four high tensile steel wire braid
